Details

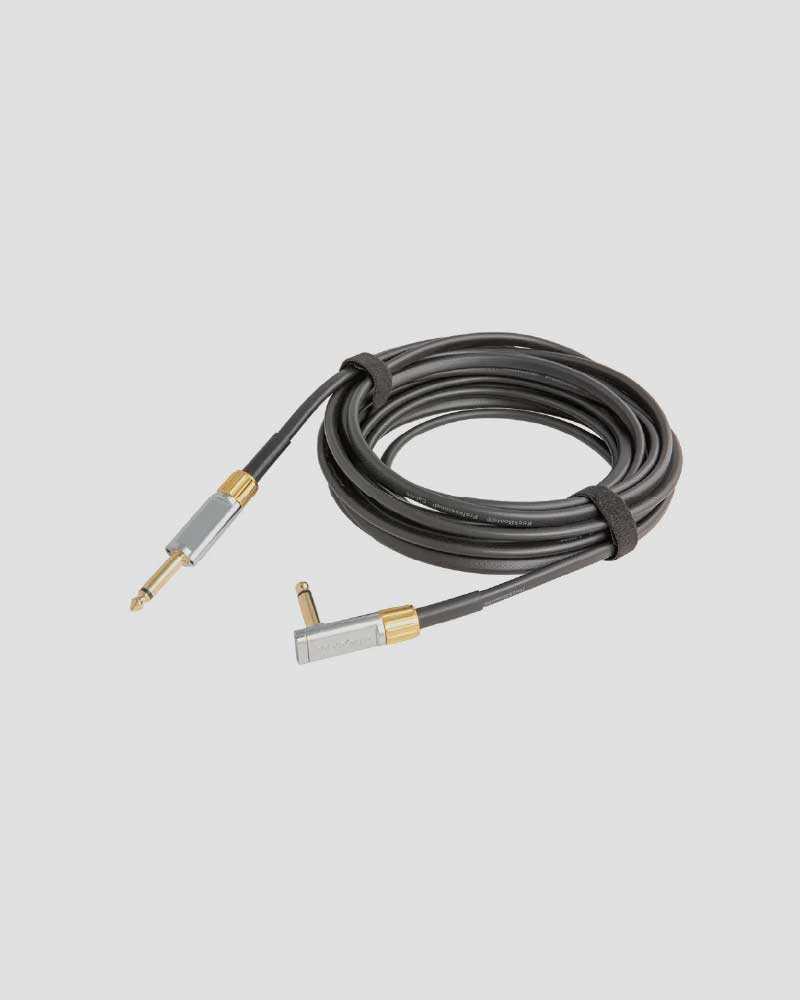

• high-end flat instrument cable
• super flat gold-plated 6.3 mm mono audio plugs (straight/angled)
• flat rectangular cable, prevents cable breakage and jams
• 100% braided tinned copper shielding 16 x 4 x 0,15 mm (34 AWG)
• flexible copper conductor 50 x 0,12 mm (36 AWG)
• aluminum foil shield (0,06 mm / 0.002″)
• signal Insulation PE (polyethylene ø 2,9 mm / 7/64″)
• cable mantle PVC (Polyvinylchloride)
• semi-conductive layer (0,5 mm / 1/64″) between signal insulation and shield, for preventing cable microphonics
• capacitance conductor/shield less than 8 pF/decimeter
• conductor resistance less than 8 mOhm/decimeter
• operating temperature -15° C to +70° C / 5° F to 158° F
• outer dimension of cable 8 x 5 mm (5/16” x 13/64”)
• outer dimensions plugs straight (L x W) 80 x 16 mm (3 5/32” x 5/8”)
• outer dimensions plugs angled (L x W x D) 50 x 16 x 40 mm (1 31/32” x 5/8” x 1 37/64”)
• length 600 cm / 236 7/32″
• black
